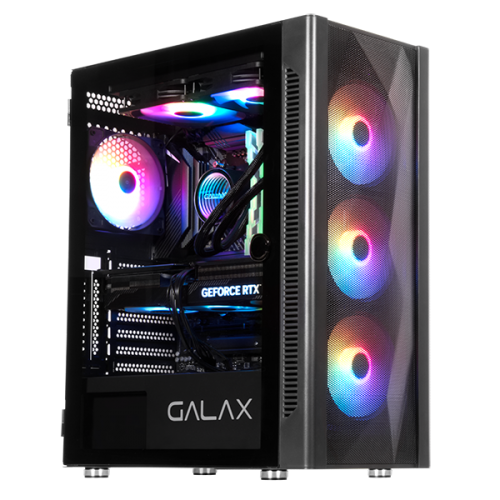

REVOLUTION 06

REVOLUTION 06

All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.

	Form Factor (Midi, Micro, Mini ITX, Full)	ATX, M-ATX, ITX
	Chassis	SPCC + Tempered Glass
	PSU Form Factor	ATX ≤160mm ≤14015086mm
	M/B Form Factor	ATX, M-ATX, ITX
	Front Panel	ABS, Mesh cover
	Top Panel	Metal cover
Side Panel	Left	Tempered Glass
Side Panel	Right	Metal cover
Internal Drive Bay(s)	3.5" (HDD)	*2
Internal Drive Bay(s)	2.5" (SSD)	*3
I/O	Buttons	*2
	USB1.1 Port(s)	*0
	USB2.0 Port(s)	*2
	USB3.0 Port(s)	*1
	HD Audio Support	*1
Cooling Fan Support	Front	3x120mm (Fan optional)
	Top	2x120mm，2x140mm (Fan optional)
	Rear	1x120mm (Fan optional)
	Side	0
Water Cooling Support (Radiator Size)	Front	240mm/280mm/360mm
	Top	240mm/280mm
	Rear	120mm
Dimensions	Chassis	(L)350(W)205(H)470mm
	Full Case (inc Fascia)	(L)400.6(W)205(H)481.5mm
	Carton	(L)532(W)258(H)465mm
	Net Weight (Kg)	4.3KG
	Gross Weight (Kg)	4.95KG
	VGA Card Length	up to 330mm
	CPU Cooler Height	160mm
	Cable Management Depth	18mm
	ARGB Fan	4 included

Galaxy Microsystems Ltd.
